Heavy-Duty Swing Gate Opener, 1,200 kg

Heavy-duty swing gate opener rated to 1,200 kg and 6 m leaf length. 650 Nm torque, dual swing ready, WiFi and Bluetooth built in. 24V DC, ships complete.

650 Nm

Max output torque

1,200 kg

Max gate weight

6 m

Max Gate leaf length

-35°C to 70°C

Operating temperature

Request a Quote

✓ Free Site Survey

✓ Certified Installation

✓ Local Warranty

Overview Details Technical Specifications What's in the Box Frequently Asked Questions

The Heavy Duty Swing Gate Opener Built for Gates Up to 1,200 kg.

Overview

Open Bear's heavy duty swing gate opener delivers 650 Nm of torque and handles single swing gate leaves up to 1,200 kg and 6 metres long. It runs on a 24V DC motor at 400W, with Bluetooth and WiFi built in as standard — no extra accessories required. Operates from -35°C to 70°C. Factory-direct from the manufacturer, with full English installation documentation in every shipment.

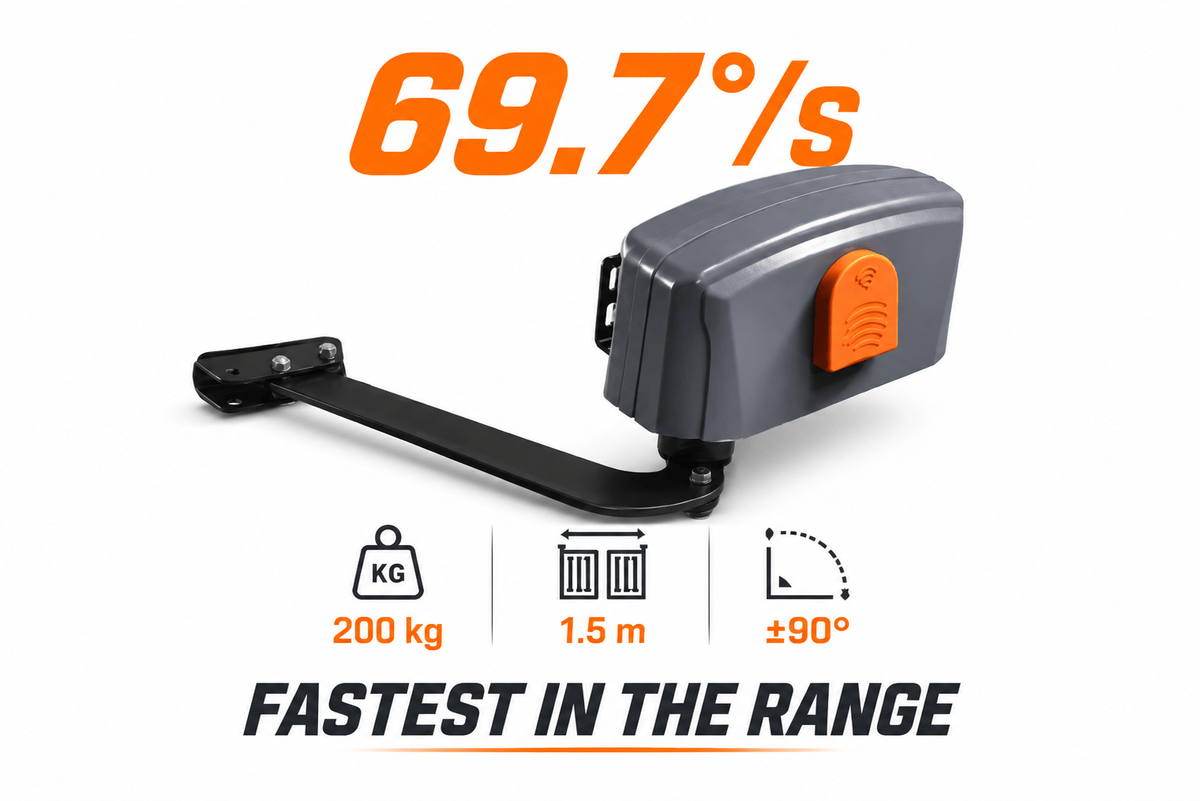

SPEED & PRECISION

69.7°/s. The Fastest Swing Speed in the Range.

At 69.7°/s, this is the fastest angular opening speed across all six Open Bear gate operators. Your gate reaches fully open in under two seconds from the moment you trigger it. The crank connecting rod drive delivers smooth, consistent motion every cycle — no jerking at the start, no slamming at the end.

69.7°/s angular speed — fastest in the Open Bear range

Gates up to 200 kg and 1.5 m wide

±90° maximum opening angle

69.7°/s. The Fastest Swing Speed in the Range.

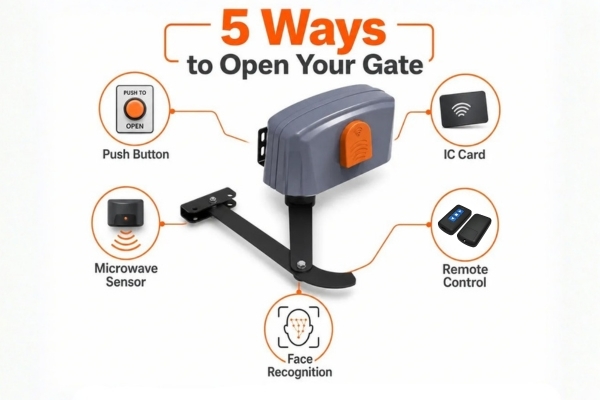

SMART ACCESS

Five Ways to Open Your Gate. Your Choice.

The opener connects to every major access method — press a button, tap an IC card, walk through a microwave sensor, use the included remote control, or connect a face recognition terminal. Every method works independently through the same controller. Mix and match to suit your property, your visitors, and your security setup.

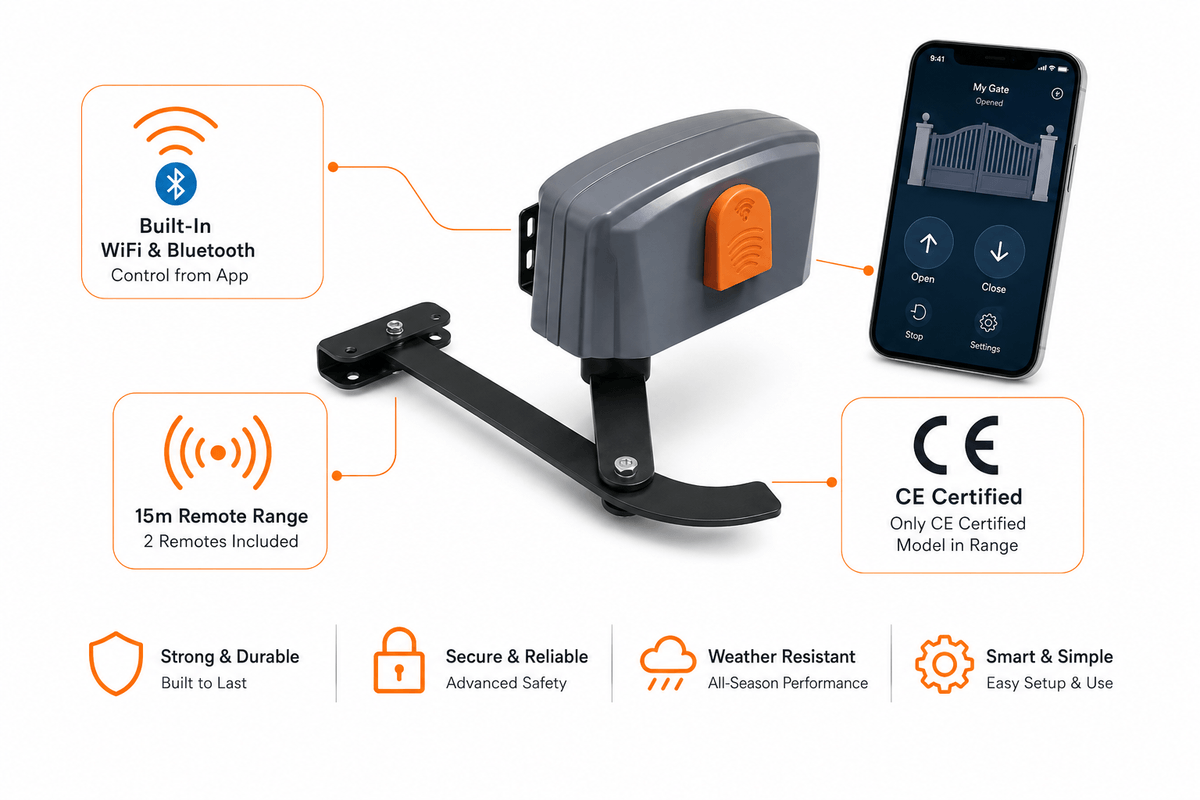

CONNECTED FROM DAY ONE

Bluetooth and WiFi Built In. CE Certified. Nothing Extra to Buy.

Bluetooth & Wifi built in — control from anywhere from App

15 m RF remote range — 2 remotes included

CE certified — only CE certified swing model in the range

Bluetooth and WiFi Built In. CE Certified. Nothing Extra to Buy.

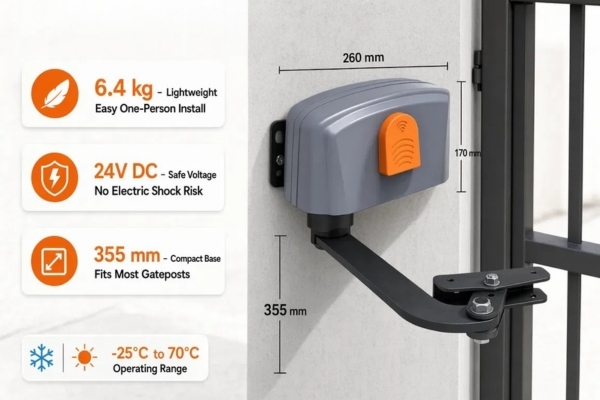

SLIM, SAFE & EASY TO INSTALL

6.4 kg. 24V DC. Mounts to Most Gateposts in Hours.

At 6.4 kg and 355 mm long, this heavy-duty swing gate operator mounts cleanly to most gateposts without the bulky bracket work required by heavier operators. The motor runs on 24V DC, well below the voltage where electric shock becomes a risk. The operating range runs from -25°C to 70°C, covering most residential climates worldwide.

6.4 kg total packaged weight

24V DC safety voltage

Fixed base: 355.5 × 89 mm

6.4 kg. 24V DC. Mounts to Most Gateposts in Hours.

Technical Specifications

Download Product Manual

Power Supply Voltage

220VAC ±15% 50Hz

Motor Operating Voltage

24VDC

Power of Motor

400W

Rated Output Torque

650Nm

Angular Operating Speed

13°/s

Maximum Opening Angle

±90°

Maximum Leaf Width

6 meters

Maximum ground clearance

≤50 cm

Rated rotational speed

3,000 rpm

Rated current

20A

Supported Connectivity

Bluetooth, WiFi, Remote gate opening, Remote debugging

Duty Cycle / Frequency of Use

Continuous use below 70°C

Motor Thermal Protection

F-grade 155°C

Remote range

15 m

Working environment

Indoor or sheltered outdoor

Body Size (L * W * T)

361.8 * 203.4 * 174.7 mm

Operating Sound Level

≤ 60dB

Motor Temperature Rise

≤ 15°C

Working Environment Temperature

-25°C to 70°C

Controller packaging weight

3 kg

Main unit weight

8.1 kg

Maximum ground clearance

≤50 cm

What's in the Box

Everything You Need. One Box. Ready to Install.

Gate opener

Slim brushed aluminium motor unit — 6.4 kg

Big arm

Black powder-coated metal swing arm

Connecting rods

Black crank connecting rod assembly

Fixing plates

2× metal mounting plates with pre-drilled holes

Remote controls

2× RF remote controls — blue button, black body

Screw packs

Full bag of anchor bolts and fixing screws

Frequently Asked Questions

Up to 1,200 kg per leaf, with a leaf length up to 6 metres. It delivers 650 Nm of output torque - enough for heavy steel and solid-infill gates, not just lightweight residential ones.

Yes. It's dual-swing ready - fit one unit per leaf and both run in sync through the same controller. Two remotes are included in each kit.

Yes. The motor runs on 24V DC, well below the voltage where electric shock becomes a risk, so the gate is safe to touch mid-cycle. F-class 155°C thermal protection guards the motor against overheating.

Yes. Bluetooth and WiFi are built in as standard - no extra module to buy. You can open, close, and adjust the gate from the app, and the two included RF remotes reach up to 15 metres.

Yes. It's independently CE certified to European safety standards for gate automation, making it suitable for markets that require CE compliance.

From -25°C to 70°C, rated for continuous use below 70°C. The same unit works across most residential and commercial climates without modification.

A complete kit: the 6.4 kg aluminium motor unit, swing arm, crank connecting rods, two mounting plates with pre-drilled holes, two RF remotes, and a full pack of anchor bolts and fixing screws - plus the English manual, wiring diagram, and parameter table.

A high torque gate opener has a stronger drive for gates that are heavy, long, solid, or hard to swing, for example large driveway gates and industrial entrances. If your gate is light and short, a lower-torque kit is usually enough.

For most large driveway gates and industrial entrances inside the 1,200 kg and 6 m rating, yes. Solid panels catch more wind than open-bar gates, so leave some margin if your gate is close to the limit. Send us your gate weight, length and type and we will confirm the right model.
