Barrier Gate Openers

Barrier Gate Opener Rated for 10,000,000 Cycles

This barrier gate opener completes a full trip in as little as 0.7 seconds and handles arms up to 6 metres long. Rated for 10 million operating cycles — built for parking facilities, logistics sites, and high-traffic access points that open hundreds of times a day without stopping.

0.7s

Min trip time

10,000,000

Rated cycles

6 m

Max arm length

-35°C to 70°C

Operating temperature

Request a Quote

✓ Free Site Survey

✓ Certified Installation

✓ Local Warranty

Overview Details Technical Specifications What's in the Box Frequently Asked Questions

10,000,000 Cycles. At 500 Trips a Day — That's 54 Years.

Overview

A parking facility running 500 trips a day takes 54 years to reach 10 million cycles. A logistics gate running 1,000 trips a day takes 27. This barrier gate opener is rated beyond the lifespan of the site it is installed on. The mean cycles between failures (MCBF) is rated at 2,000,000 — meaning the mechanism is designed to run 2 million cycles between any service event.

≥10,000,000 life cycles — rated beyond facility lifespan

≥2,000,000 MCBF — mean cycles between failures

300W servo motor — 3,000 rpm precision drive

Spring mechanism — arm folds on vehicle impact, motor protected

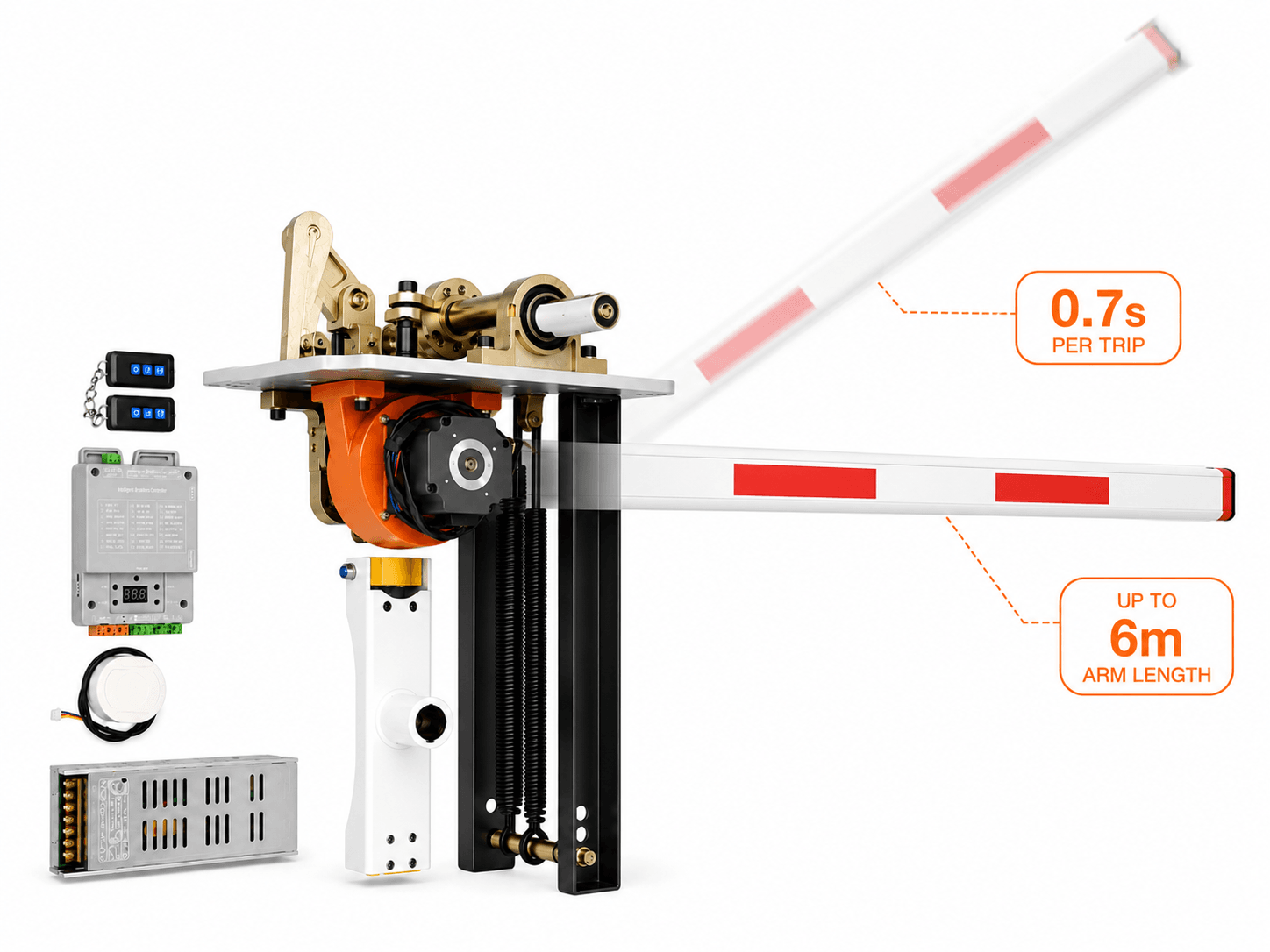

SPEED

0.7 Seconds Per Trip. Vehicles Don't Stop.

With a carbon fiber arm fitted, the barrier gate operator completes a full trip — arm up or arm down — in 0.7 seconds. Vehicles approach and the gate is already rising. The trip time is adjustable from 0.7 to 6 seconds on the carbon fiber arm and 0.9 to 6 seconds on the aluminium arm — set once to match your site's speed requirements. Straight arms reach up to 6 metres, fence-style arms up to 5 metres.

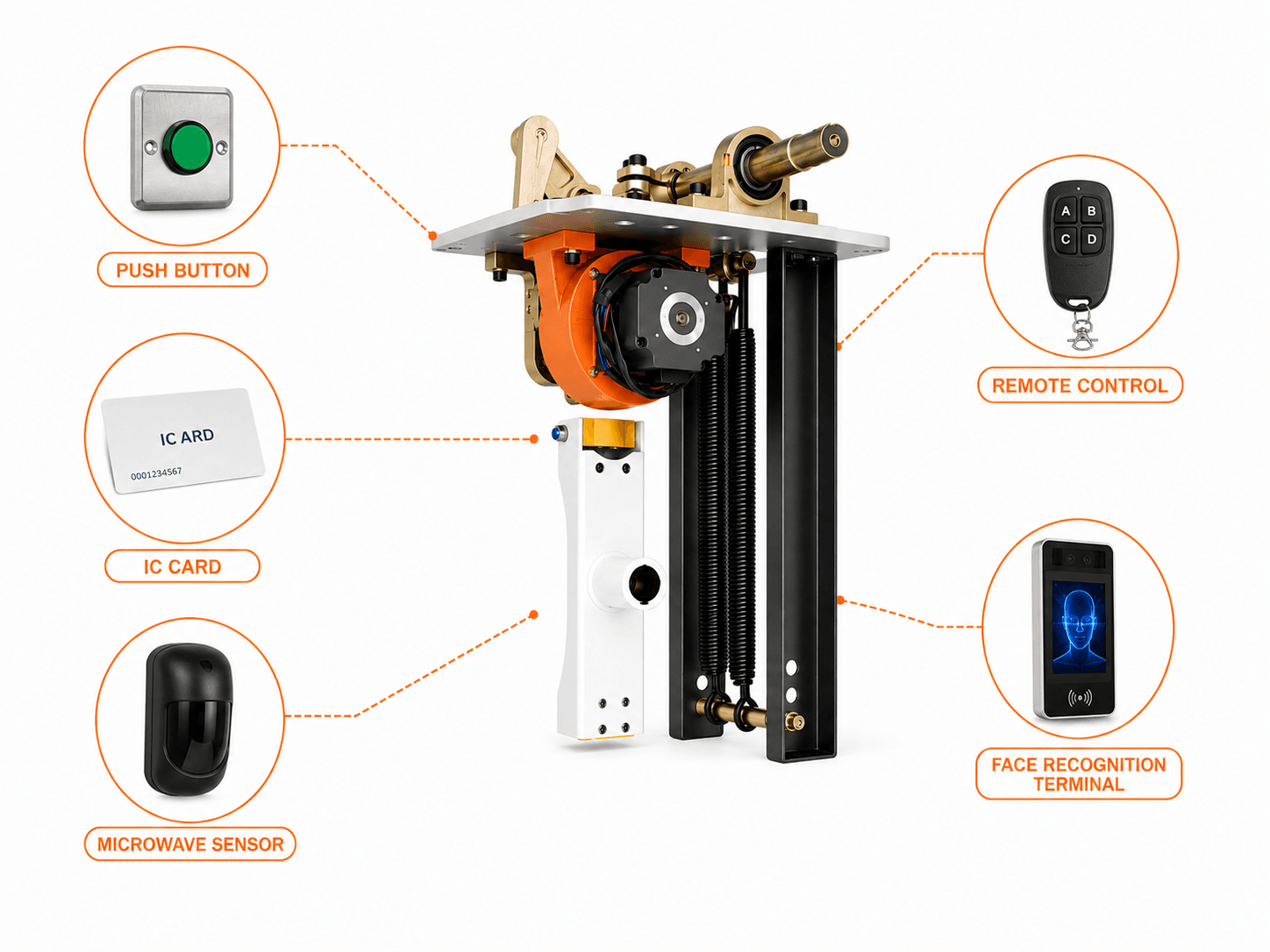

SMART ACCESS

Five Ways to Trigger the Gate. One Controller.

The controller connects to every major access method — press a button, tap an IC card, walk or drive through a microwave sensor, use a remote control, or connect a face recognition terminal. Every method works through the same controller. Configure one or several simultaneously to match your site's traffic flow and security setup.

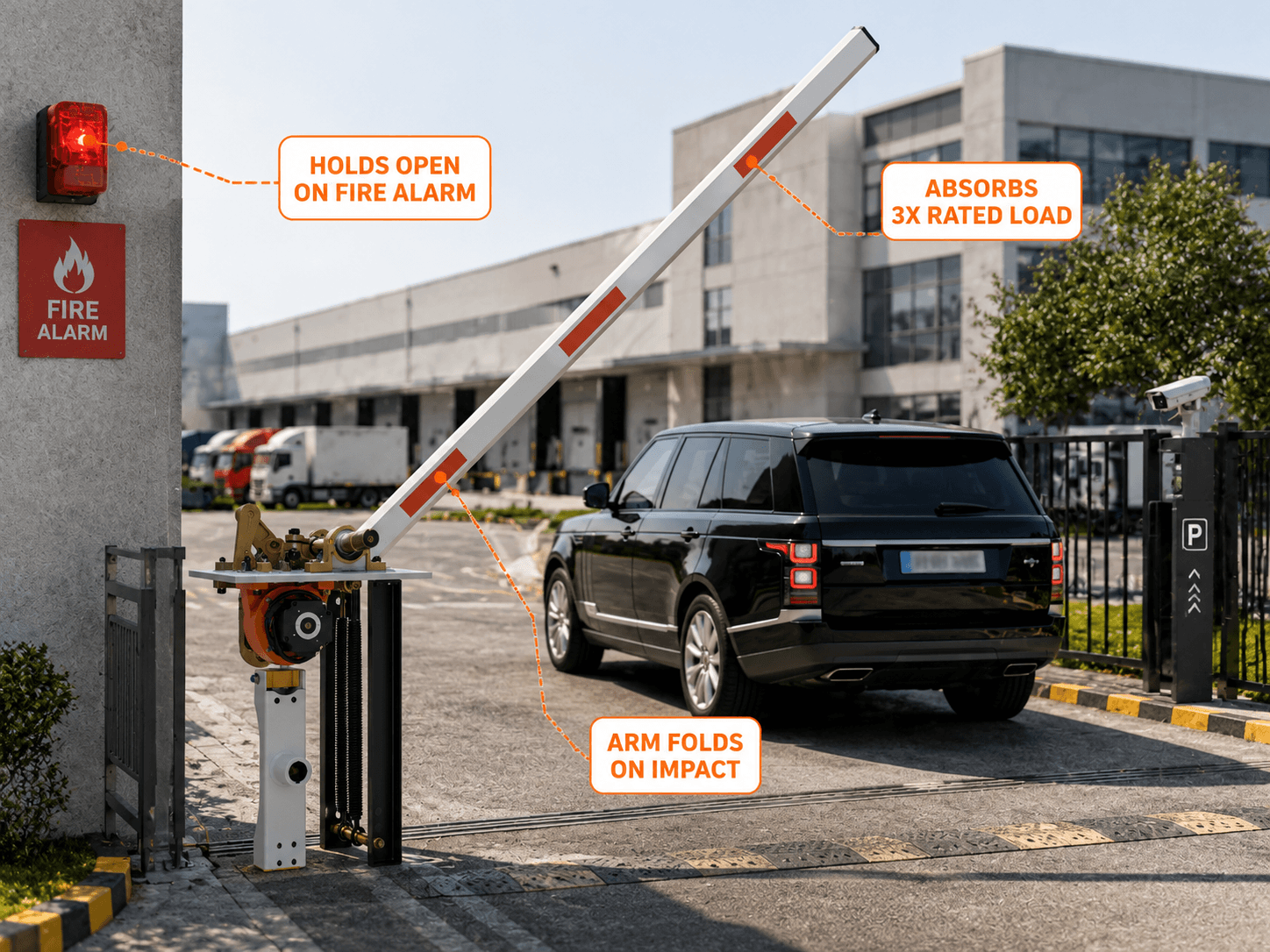

SMART CONTROL

Built-In Safety Logic. No Guesswork.

This barrier gate operator's controller reacts before a fault becomes a breakdown. Connect a fire alarm signal and the barrier holds open automatically during an evacuation — no manual override needed. The motor absorbs 3 times its rated load without cutting out, so a stalled vehicle or a sudden gust doesn't shut the system down.

Technical Specifications

Roller Swing Opener User Manual (PDF) Technical Specifications Sheet (PDF)

Rated operating voltage

24V DC

Rated power

300W

Rated current

12.5A

Motor speed

3,000 rpm

Min trip time — carbon fiber arm

0.7s

Min trip time — aluminium arm

0.9s

Adjustable trip time

0.7–6s (carbon fiber) · 0.9–6s (aluminium)

Max arm length

≤6m straight arm · ≤5m fence arm

MCBF

≥2,000,000 cycles

Life cycles

≥10,000,000 cycles

Running noise

≤60 dB

Operating ambient temperature

-35°C to 70°C

Operating humidity

≤95% non-condensing

Max altitude

2,000m

Temperature rise

≤15°C

Controller dimensions

176.6 × 103 × 25 mm

Body dimensions

300 × 270 × 616 mm

What's in the Box

Everything You Need. One Kit. Ready to Install.

Servo motor unit

Orange/black servo motor — 300W, 24V DC

Spring mechanism rail

Black spring rail — arm mounting and safety fold system

Arm housing

White housing cover

Control driver board

Programmable controller — speed, access method inputs

Power supply

Included

Remote controls

2× RF remotes included

English manual

Installation guide, wiring diagram, parameter table

Frequently Asked Questions

It's rated for 10,000,000 operating cycles, with a mean cycles between failures (MCBF) of 2,000,000. At 500 trips a day that's roughly 54 years of service; at 1,000 trips a day, about 27 years longer than the lifespan of most facilities it's installed in.

A full trip takes as little as 0.7 seconds with a carbon fiber arm fitted (0.9 seconds with aluminium). The trip time is adjustable from 0.7 to 6 seconds, so you can match it to your site's traffic speed and safety needs.

Straight arms reach up to 6 metres and fence-style arms up to 5 metres. Arm material and length affect trip speed, so longer arms are set toward the slower end of the adjustable range.

Five, all through one controller: push button, IC card, microwave sensor (walk or drive-through), remote control, and face recognition terminal. You can run one method or several at the same time.

Yes. Connect a fire alarm signal and the barrier holds open automatically for evacuation — no manual override needed. The 300W servo motor also absorbs up to 3× its rated load without cutting out, so a stalled vehicle or wind gust won't shut it down.

From -35°C to 70°C without modification. The same unit runs through a Canadian winter or a Gulf summer, at up to 2,000 m altitude and ≤95% non-condensing humidity.

A complete kit: the 300W 24V DC servo motor unit, spring mechanism rail (arm folds on impact to protect the motor), arm housing, programmable controller, power supply, 2 RF remotes, and an English manual with wiring diagram and parameter table.
