VILLAS & PRIVATE ESTATES
Residential Gate Automation
Engineered for quiet, smooth, and dependable access control across residential driveways, private gates, and luxury properties.
Swing Gate Openers

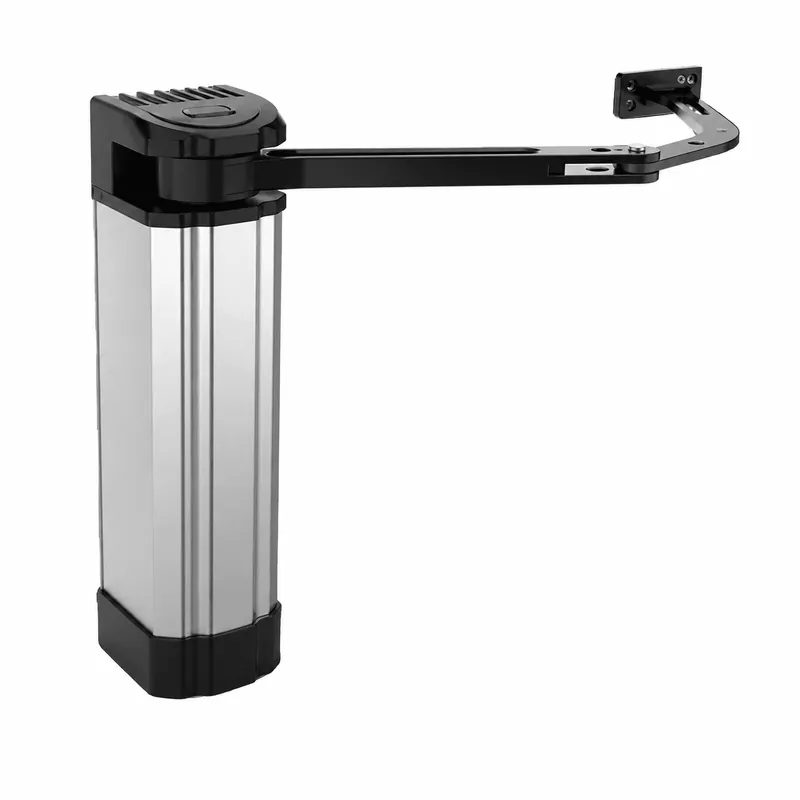

Side Mounted Swing Gate Opener
This side mounted swing gate opener opens your gate at 69.7°/s — the fastest swing speed in the Open Bear range. Bluetooth, WiFi, and a remote control are all built in. CE certified. Weighs just 6.4 kg. Five ways to trigger it from day one.
200 kg
Max gate weight 69.7°/s
Angular opening speed ≤60 dB
Running noise CE
Certified ✓ Free Site Survey
✓ Certified Installation
✓ Local Warranty
The Top Mounted Swing Gate Opener That Weighs Just 5.3 kg.
Overview
Open Bear's side mounted swing gate opener handles gates up to 200 kg and 1.5 m wide, with an angular opening speed of 69.7°/s — the fastest in the Open Bear range. It runs on a 24V DC motor, has Bluetooth and WiFi built in as standard, and is CE certified to European safety standards. Operates from -25°C to 70°C. Weighs 6.4 kg and ships complete — nothing extra to source before installation day.
SPEED & PRECISION
69.7°/s. The Fastest Swing Speed in the Range.
At 69.7°/s, this is the fastest angular opening speed across all six Open Bear gate oepners. Your gate reaches fully open in under two seconds from the moment you trigger it. The crank connecting rod drive delivers smooth, consistent motion every cycle — no jerking at the start, no slamming at the end.
69.7°/s angular speed — fastest in the Open Bear range
Gates up to 200 kg and 1.5 m wide
±90° maximum opening angle
SMART ACCESS
Five Ways to Open Your Gate. Your Choice.
The opener connects to every major access method — press a button, tap an IC card, walk through a microwave sensor, use the included remote control, or connect a face recognition terminal. Every method works independently through the same controller. Mix and match to suit your property, your visitors, and your security setup.
CONNECTED FROM DAY ONE
Bluetooth and WiFi Built In. CE Certified. Nothing Extra to Buy.
Open your gate from your phone the day it is installed — Bluetooth and WiFi are built directly into the unit, with no extra module to source or fit. The included remote controls reach 15 metres. This is the only CE certified model in the Open Bear swing range — independently verified to European safety standards for gate automation.
Bluetooth built in — no extra module
WiFi built in — control from anywhere via app
15 m RF remote range — 2 remotes included
SLIM, SAFE & EASY TO INSTALL
6.4 kg. 24V DC. Mounts to Most Gateposts in Hours.
At 6.4 kg and 355 mm long, the unit mounts cleanly to most gateposts without the bulky bracket work required by heavier operators. The motor runs on 24V DC — well below the voltage where electric shock becomes a risk. The 15 kg load-bearing metal case is dustproof and waterproof — built for exposed gate posts in rain, dust, and direct weather. The operating range runs from -25°C to 70°C, covering most residential climates worldwide.
6.4 kg total packaged weight
25°C to 70°C operating range
15 kg load-bearing metal case — dustproof and waterproof
Technical Specifications
Power Supply Voltage
220VAC ±15% 50Hz
Motor Operating Voltage
24VDC
Motor Power
60W
Rated Torque
40 Nm
Angular Velocity
69.7°/s
Maximum Opening Angle
±90°
Drive method
Crank connecting rod drive
Thermal protection
F Class 155°C
Operating ambient temperature
-25°C to 70°C
Working environment
Indoor or sheltered outdoor
Running noise
≤60 dB
Temperature rise
≤15°C
Remote range
15 m
Connectivity
Bluetooth + WiFi + RF remote
Certification
CE
Body Dimensions (L*W*T)
89.6 × 355.7 × 105.7 mm
Package Dimensions
400 × 280 × 110 mm
Equipment Packaging Weight
6.4kg
Fixed base dimensions
355.5 × 89 mm
Maximum door leaf length
1.5 m (single door)
Maximum door leaf weight
200 kg
What's in the Box
Every Open Bear side mounted swing gate opener ships as a complete kit. Nothing needs to be sourced separately before installation day — open the box and the job can start. Gate opener
Slim brushed aluminium motor unit — 6.4 kg
Big arm
Black powder-coated metal swing arm
Connecting rods
Black crank connecting rod assembly
Fixing plates
2× metal mounting plates with pre-drilled holes
Remote controls
2× RF remote controls — blue button, black body
Screw packs
Full bag of anchor bolts and fixing screws
Frequently Asked Questions
At 69.7°/s, it's the fastest angular opening speed in the Open Bear range — the gate reaches fully open in under two seconds from trigger. The crank connecting rod drive keeps the motion smooth, with no jerk at the start or slam at the end.
Gates up to 200 kg and 1.5 m wide per leaf, with a ±90° maximum opening angle. It's sized for standard residential and light commercial swing gates.
Yes — and it's the only CE certified model in the Open Bear swing range, independently verified to European gate-automation safety standards. That makes it the model to choose for markets requiring CE compliance.
Yes. Bluetooth and WiFi are built directly into the unit with no extra module, so you can operate the gate from the app the day it's installed. Two RF remotes with a 15 m range are also included.
Yes. The 15 kg load-bearing metal case is dustproof and waterproof, built for exposed posts in rain, dust, and direct weather. It operates from -25°C to 70°C without modification.
It weighs just 6.4 kg and measures 355 mm long, so it mounts cleanly to most gateposts in hours — without the bulky bracket work heavier operators need. The motor runs on safe-to-touch 24V DC.
A complete kit: the 6.4 kg aluminium motor unit, swing arm, crank connecting rods, two mounting plates with pre-drilled holes, two RF remotes, and a full pack of anchor bolts and screws — plus the English manual, wiring diagram, and parameter table.
