Top-Mounted Swing Gate Opener
The slim aluminium extrusion housing runs along the top of the gate frame — visible from the side, but not from the front. At 5.3 kg, it is the lightest motor in the Open Bear swing range and puts less strain on the mounting bracket and frame than any other model. At 330 mm long and just 85 mm wide, it fits above most standard commercial and residential gate frames without modification.
5.3 kg. Mounts Above the Frame. Invisible from the Front.
The slim aluminium extrusion housing runs along the top of the gate frame — visible from the side, but not from the front. At 5.3 kg, it is the lightest motor in the Open Bear swing range and puts less strain on the mounting bracket and frame than any other model. At 330 mm long and just 85 mm wide, it fits above most standard commercial and residential gate frames without modification.
5.3 kg total weight — lightest swing motor in the Open Bear range
Slim aluminium rail housing — 330 × 85 × 84.4 mm
Mounts above the door frame — not visible from the front

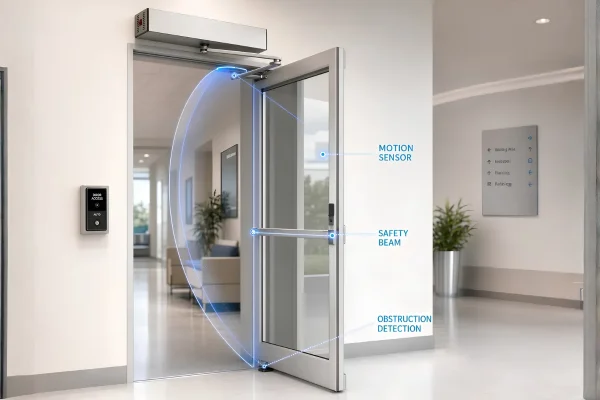

5-Type Obstacle Detection. Five Ways to Open. Slow Start. Slow Stop.
An electronic sensing system monitors the gate arc through every cycle — detecting obstacles in 5 different ways to prevent pinching or collision. If the gate hits resistance mid-swing, it rebounds immediately. The slow start and slow stop motion profile means the gate accelerates and decelerates gently at both ends — safe, quiet, and smooth every time. The same controller connects to five access methods from day one: button, IC card, microwave sensor, remote control, or face recognition terminal.
5-type obstacle detection — anti-pinch and anti-collision
Rebound on resistance — stops and reverses immediately
Silent · Smart — quiet operation through every cycle

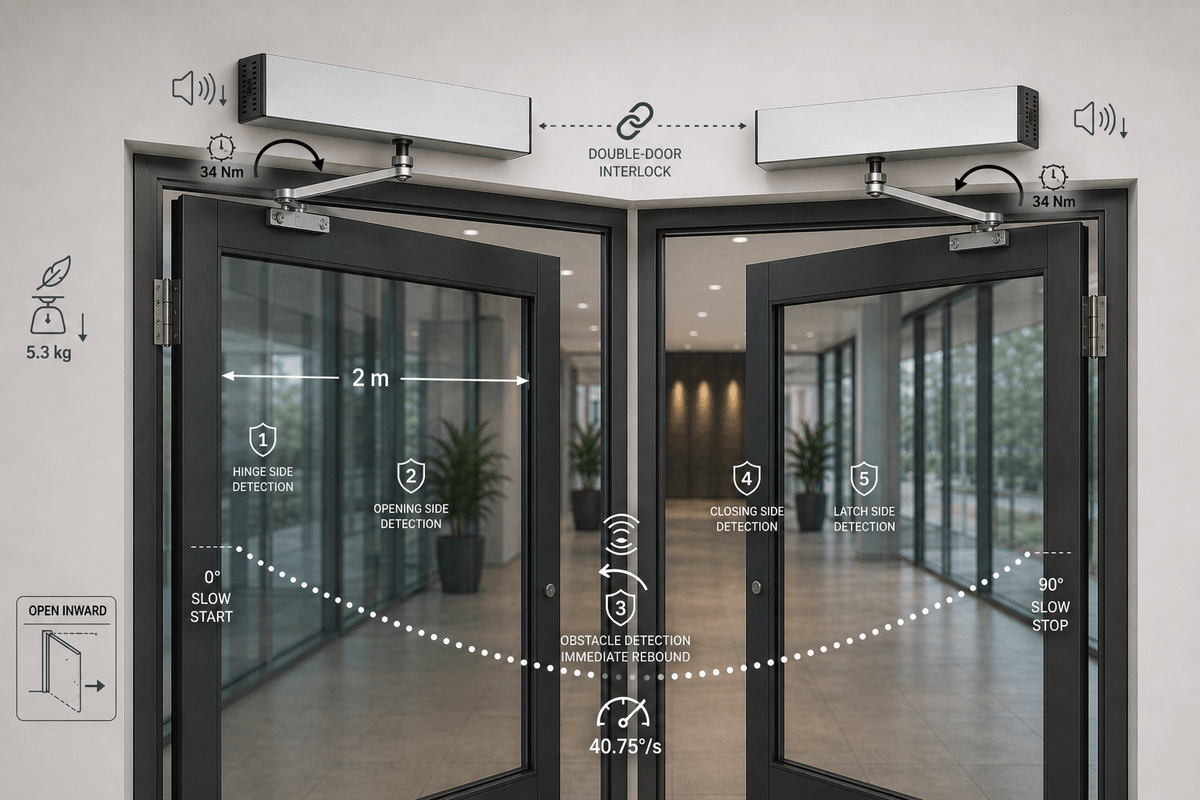

34 Nm. The Widest Swing Coverage in the Light-Duty Range.
With a maximum gate leaf length of 2 m, this top mounted swing gate opener covers a wider gate than the side-mounted model's 1.5 m — right for standard commercial entrance gates, pedestrian gates, and wider residential garden gates. Fit two units and they link via the double-gate interlock system — intelligent linkage keeps both leaves in sync across two modes: Automatic Gate and Swing Gate.
34 Nm output torque
40.75°/s angular speed
Doors up to 200 kg and 2 m wide

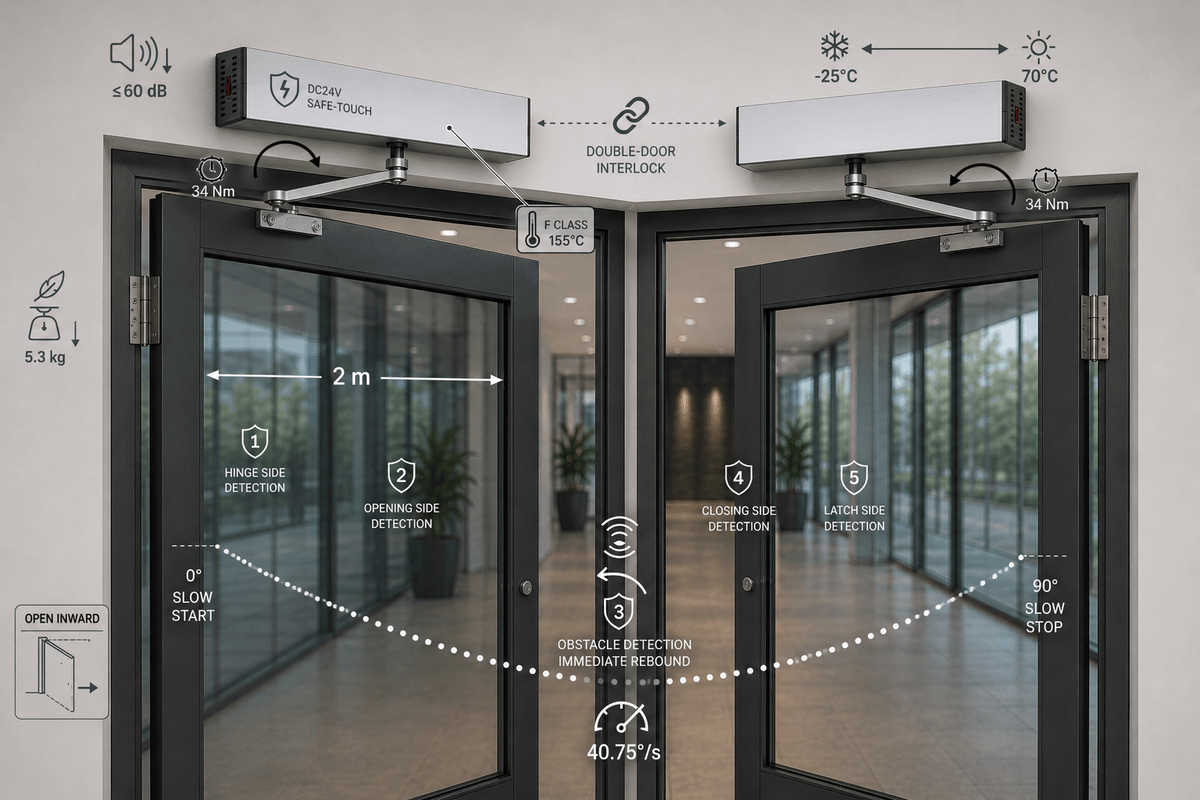

24V DC. 60 dB. Works from -25°C to 70°C Without Modification.
The motor runs on 24V DC — well below the voltage where electric shock becomes a risk, even if someone touches the gate while it moves. Running noise stays at or below 60 dB — quieter than a normal conversation at arm's length. The operating range covers -25°C to 70°C, making the same unit suitable for office lobbies, residential entrances, and outdoor installations across most climates.
≤60 dB running noise — suitable for offices, lobbies, residential
-25°C to 70°C operating range
F Class 155°C thermal protection
Technical Specifications
What's in the Box
Every Open Bear top mounted swing gate opener ships as a complete kit. Nothing needs to be sourced separately before installation day — open the box and the job can start.Frequently Asked Questions
The slim aluminium housing runs along the top of the gate frame instead of the side — visible from the side but not from the front. At 5.3 kg it's the lightest motor in the Open Bear swing range, putting less strain on the bracket and frame than any other model.
Gates up to 200 kg and 2 m wide per leaf — a wider coverage than the side-mounted model's 1.5 m. That suits standard commercial entrance gates, pedestrian gates, and wider residential garden gates.
A 5-type electronic obstacle-detection system monitors the gate arc through every cycle for anti-pinch and anti-collision protection. If the gate meets resistance mid-swing, it rebounds and reverses immediately.
In most cases, yes. At 330 mm long and 85 mm wide, it fits above most standard commercial and residential gate frames without modification.
Yes. Fit two units and they link through the double-gate interlock system, keeping both leaves synchronised across two modes — Automatic Gate and Swing Gate.
Yes. Running noise stays at or below 60 dB — quieter than a normal conversation — with slow-start and slow-stop motion. The motor runs on safe-to-touch 24V DC with F-class 155°C thermal protection, and operates from -25°C to 70°C.
A complete kit: the 5.3 kg aluminium rail motor unit, the programmable controller (speed, auto-close delay, obstacle response), two RF remotes, all brackets, anchor bolts and fixings, plus the English manual with wiring diagram and parameter table.
