Barrier Gate Opener Rated for 10,000,000 Cycles
This barrier gate opener completes a full trip in as little as 0.7 seconds and handles arms up to 6 metres long. Rated for 10 million operating cycles — built for parking facilities, logistics sites, and high-traffic access points that open hundreds of times a day without stopping.

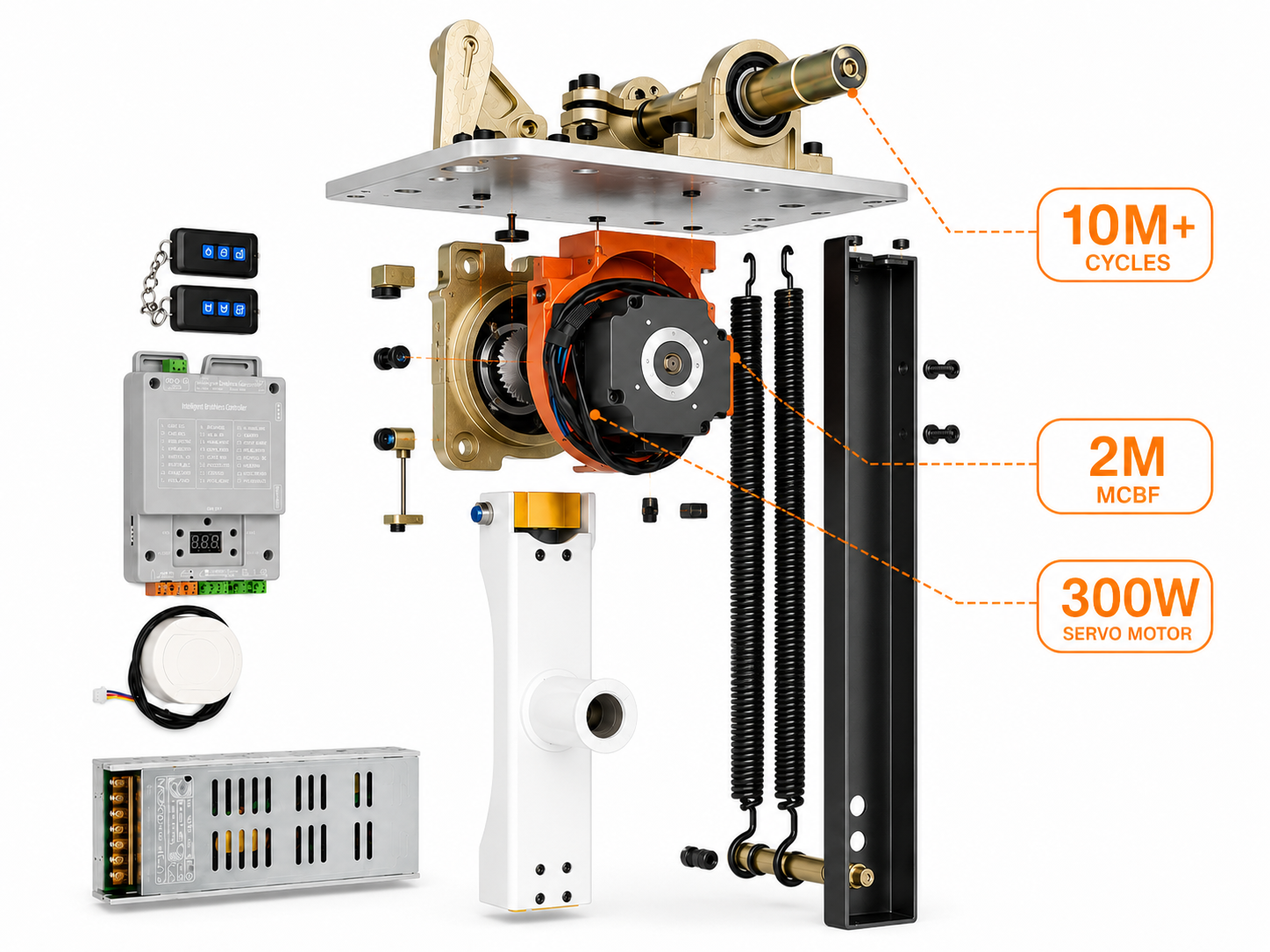

Overview
A parking facility running 500 trips a day takes 54 years to reach 10 million cycles. A logistics gate running 1,000 trips a day takes 27. This barrier gate opener is rated beyond the lifespan of the site it is installed on. The mean cycles between failures (MCBF) is rated at 2,000,000 — meaning the mechanism is designed to run 2 million cycles between any service event.

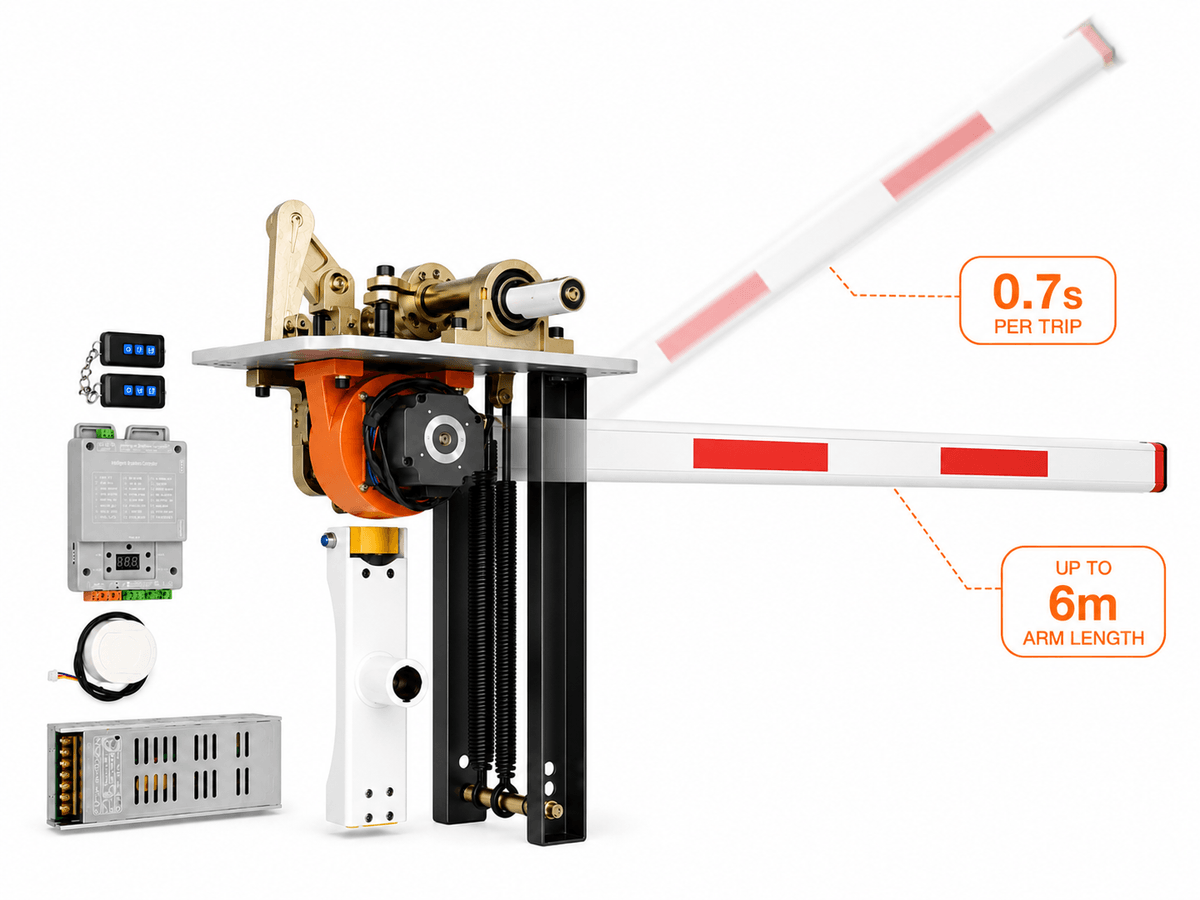

0.7 Seconds Per Trip. Vehicles Don't Stop.
With a carbon fiber arm fitted, the barrier gate operator completes a full trip — arm up or arm down — in 0.7 seconds. Vehicles approach and the gate is already rising. The trip time is adjustable from 0.7 to 6 seconds on the carbon fiber arm and 0.9 to 6 seconds on the aluminium arm — set once to match your site's speed requirements. Straight arms reach up to 6 metres, fence-style arms up to 5 metres.

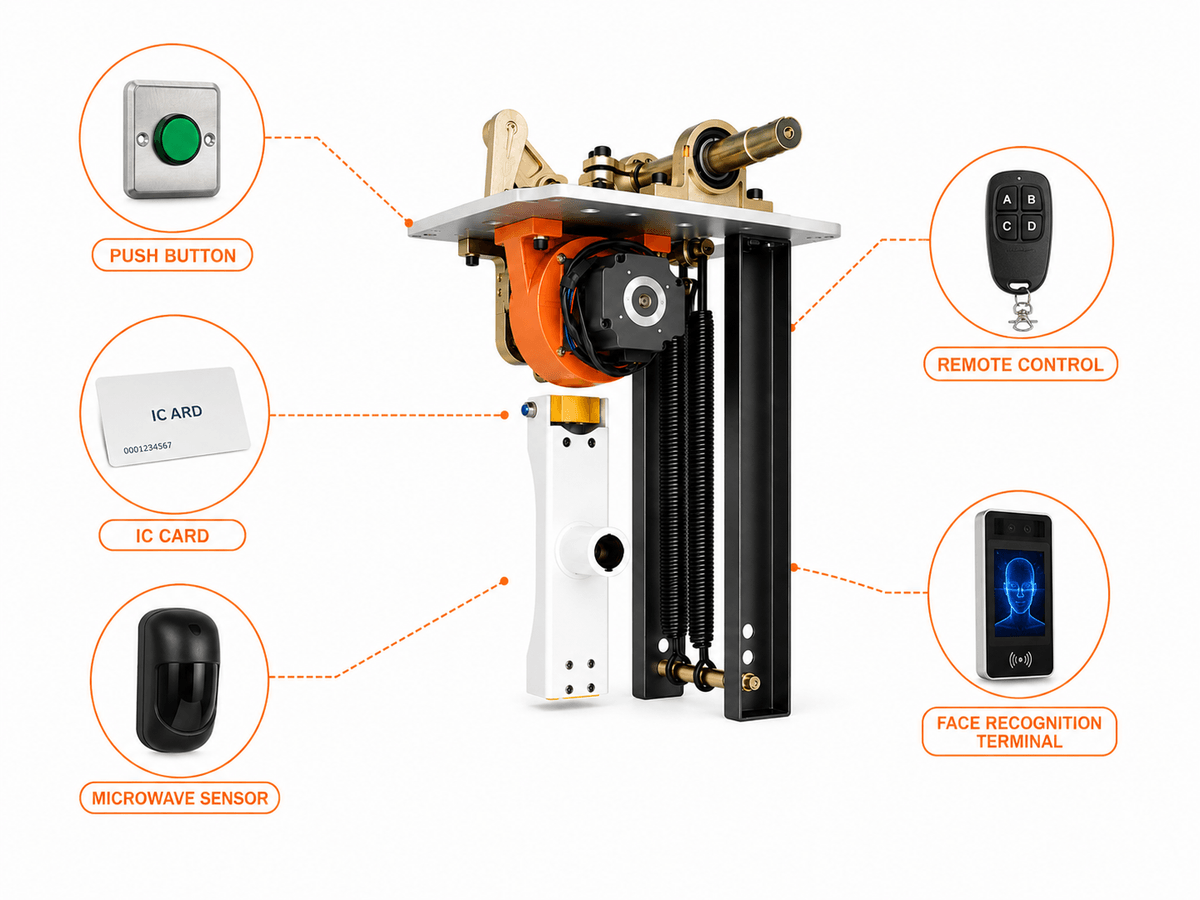

Five Ways to Trigger the Gate. One Controller.
The controller connects to every major access method — press a button, tap an IC card, walk or drive through a microwave sensor, use a remote control, or connect a face recognition terminal. Every method works through the same controller. Configure one or several simultaneously to match your site's traffic flow and security setup.

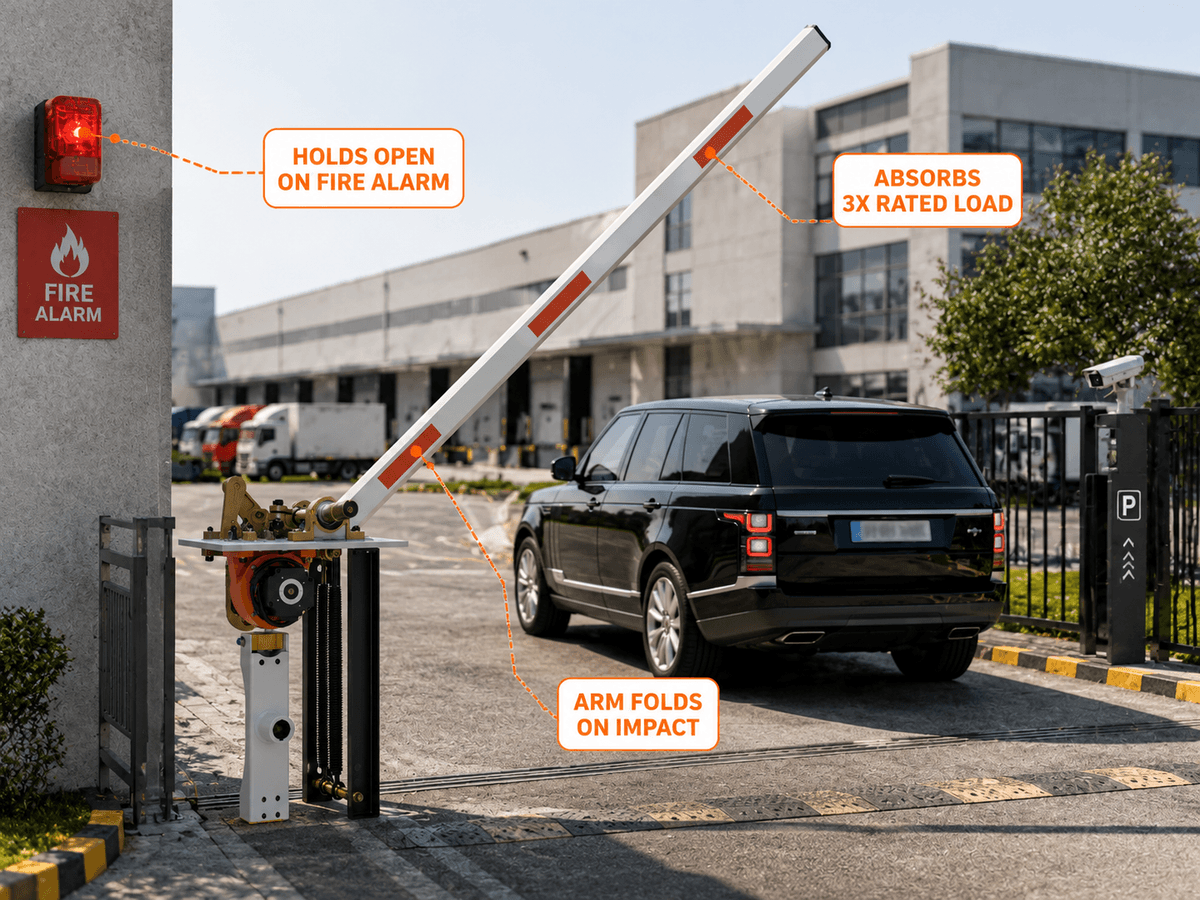

Built-In Safety Logic. No Guesswork.
This barrier gate operator's controller reacts before a fault becomes a breakdown. Connect a fire alarm signal and the barrier holds open automatically during an evacuation — no manual override needed. The motor absorbs 3 times its rated load without cutting out, so a stalled vehicle or a sudden gust doesn't shut the system down.
Technical Specifications
What's in the Box
Everything You Need. One Kit. Ready to Install.Frequently Asked Questions
It's rated for 10,000,000 operating cycles, with a mean cycles between failures (MCBF) of 2,000,000. At 500 trips a day that's roughly 54 years of service; at 1,000 trips a day, about 27 years longer than the lifespan of most facilities it's installed in.
A full trip takes as little as 0.7 seconds with a carbon fiber arm fitted (0.9 seconds with aluminium). The trip time is adjustable from 0.7 to 6 seconds, so you can match it to your site's traffic speed and safety needs.
Straight arms reach up to 6 metres and fence-style arms up to 5 metres. Arm material and length affect trip speed, so longer arms are set toward the slower end of the adjustable range.
Five, all through one controller: push button, IC card, microwave sensor (walk or drive-through), remote control, and face recognition terminal. You can run one method or several at the same time.
Yes. Connect a fire alarm signal and the barrier holds open automatically for evacuation — no manual override needed. The 300W servo motor also absorbs up to 3× its rated load without cutting out, so a stalled vehicle or wind gust won't shut it down.
From -35°C to 70°C without modification. The same unit runs through a Canadian winter or a Gulf summer, at up to 2,000 m altitude and ≤95% non-condensing humidity.
A complete kit: the 300W 24V DC servo motor unit, spring mechanism rail (arm folds on impact to protect the motor), arm housing, programmable controller, power supply, 2 RF remotes, and an English manual with wiring diagram and parameter table.
