VILLAS & PRIVATE ESTATES
Residential Gate Automation
Engineered for quiet, smooth, and dependable access control across residential driveways, private gates, and luxury properties.
Door Openers
Swing Gate Opener with Roller Arm
Roller arm swing gate opener built on 24V DC — quieter, safer, and complete out of the box. WiFi, Bluetooth, and remote control for single or dual swing gates.
350 * 128 * 175 mm
Body Dimension 40W×2 / 80W×2 / 120W×2
Motor Power Indoors / Outdoors (-40°C to +50°C)
Usage Environment 18.6kg/box
Packaging Weight ✓ Free Site Survey
✓ Certified Installation
✓ Local Warranty
PRODUCT OVERVIEW
Overview
The OPEN BEAR Roller Swing Gate Opener (OB-DO-08) is a revolutionary trackless wheel-driven gate opener that mounts on the bottom of the gate leaf, far from the hinge. This ensures efficient, safe force distribution and low power consumption. Equipped with an elastic shock absorber, it automatically rises and falls to adapt to undulating driveways (up to 250mm height variance) without requiring tracks.
Direct force distribution acting far from the hinge for maximum torque
Sliding shock absorber adapts to ground undulations (up to 250mm)
Unlimited opening angle not restricted by the opener
TRACKLESS TRACTION

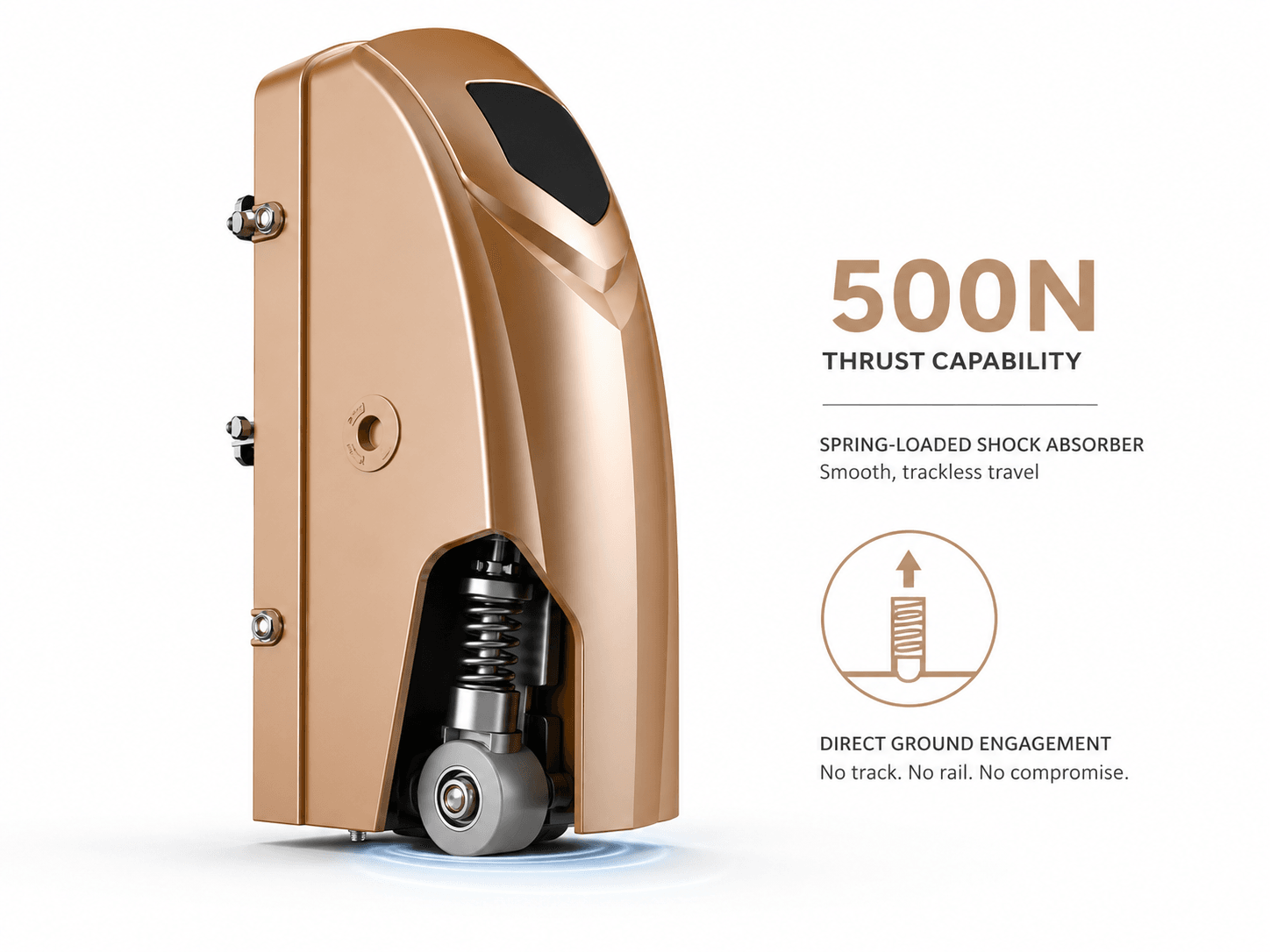

500N Thrust. Roller Automation for Uneven Surfaces.
Equipped with a unique spring-loaded sliding shock absorber, the roller operator can elastically lift and fall up to 250mm. This allows it to roll smoothly over slopes and undulating driveways without requiring tracks or damaging the ground.
Uneven Surface Ready
Standard config supports 0-90mm drop; lengthened config supports up to 250mm ground drop.
500N Opening Thrust
High-torque DC24V motor options (40W, 80W, or 120W) provide robust opening power for any gate size.
SAFE & SECURE

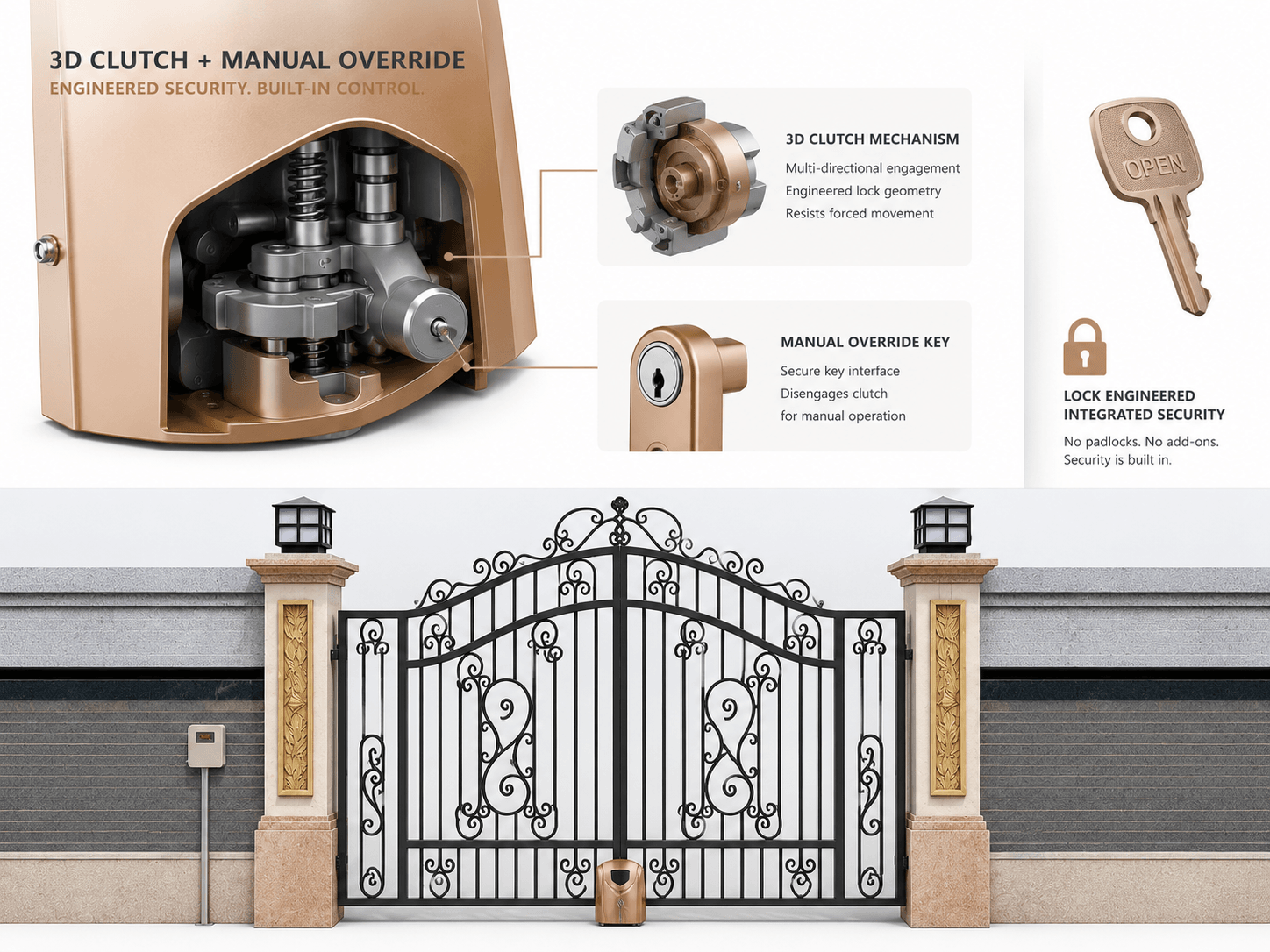

Auto-Locking 3D Clutch. No Extra Padlocks Needed.
Features an integrated three-dimensional clutch mechanism that automatically locks the driving wheel when the gate is fully closed. In case of power failure, a dedicated manual key switches the system to manual control in seconds.
3D Safety Lock
Locks the gate securely on closing to prevent illegal entry or force-opening.
Manual Override Key
Quick-release mechanical clutch key to switch from electric to manual operation.
UNIVERSAL FIT

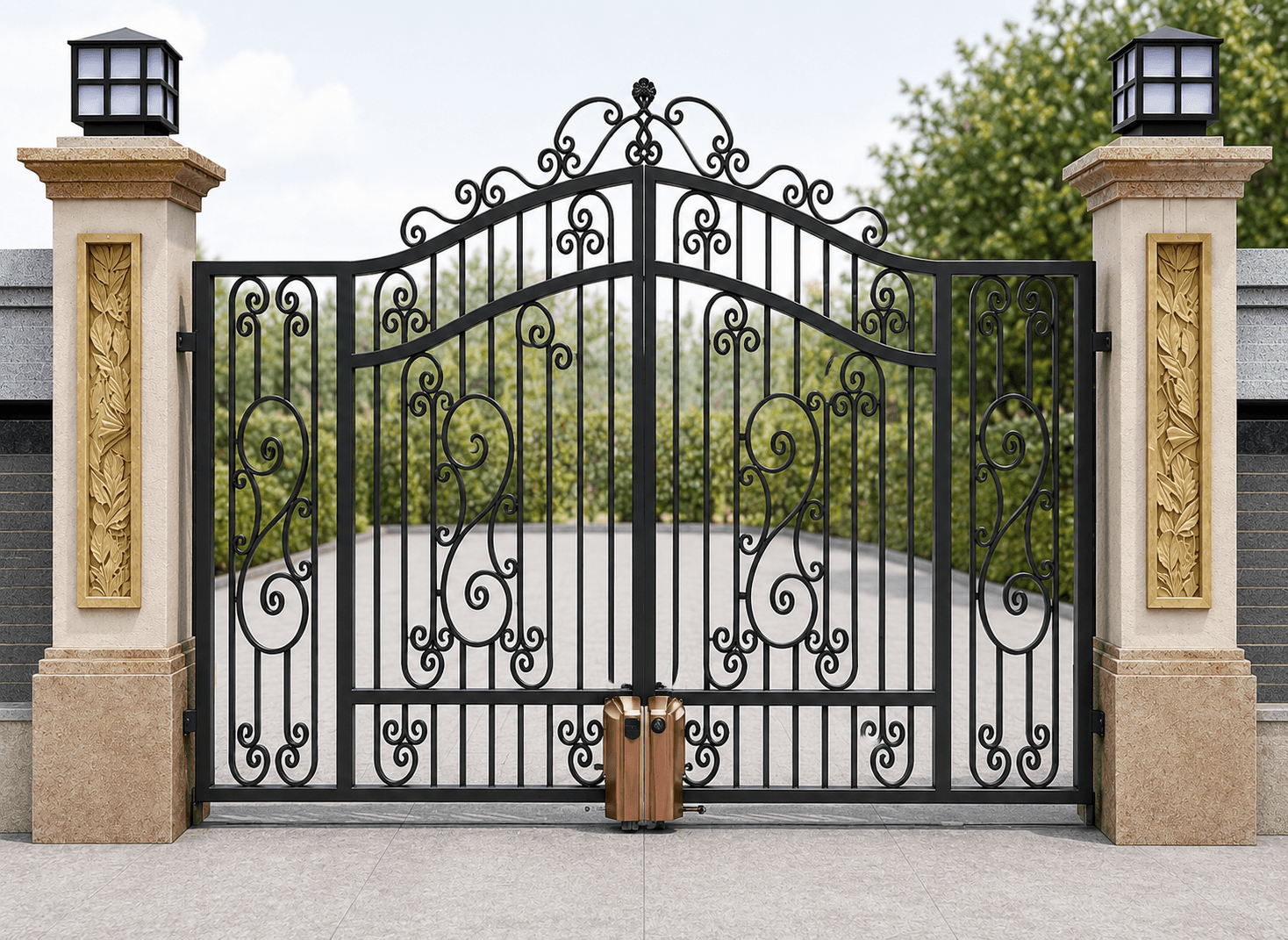

Zero Pillar Stress. Installed on New or Old Gates.
Since the driving force pushes directly off the ground rather than pulling against the gatepost, there is zero stress exerted on gate hinges. This protects massive masonry or stone pillars from cracking over time.
Pillar Protection
No stress on gate posts or hinges, preventing structural damage and alignment issues.
Easy Retrofitting
Mounts easily on the bottom frame of new or old gates of any material (wood, metal, or iron).
Technical Specifications
Supply Voltage
AC220V or DC24V
Open Thrust
500N
Running Speed
20 m/min
Motor Power Options
40W×2 / 80W×2 / 120W×2
Remote Control Distance
≥ 50 meters
Door Operator Dimensions
350 * 128 * 175 mm
Controller Dimensions
225 * 180 * 90 mm
Equipment Packaging Weight
18.6 kg/box
Standard Drop Adaptability
0 ~ 90 mm
Lengthened Drop Adaptability
0 ~ 250 mm
Working Temperature
-40°C to +50°C
Obstacle Detection
Stop on open obstacle, reverse on close obstacle
Backup Power Interface
Compatible with storage batteries and solar cells
What's in the Box
Complete trackless roller-driven automation kit. Ground-Roller Drive Host (Pair)
Two 24V motor units with elastic suspension columns.
Smart Logic Controller
Central microprocessor control box (225*180*90mm).
Manual Override Keys
Special keys to switch to manual state during power outages.
Wireless Remotes (Pair)
Secure 315MHz rolling code transmitters.
Locking Retaining Iron
Ground plates for the automatic locking hook.
Frequently Asked Questions
It mounts at the bottom of the gate leaf and drives the gate using a ground-contact roller, pushing off the ground rather than pulling against the gatepost. A spring-loaded shock absorber lets the roller rise and fall to follow the surface - no rails or tracks to install or damage.
Yes. The sliding shock absorber adapts to ground variance up to 90 mm in standard configuration and up to 250 mm in the lengthened configuration, so it rolls smoothly over slopes and undulating driveways.
No. Because the driving force pushes off the ground instead of pulling against the hinge, there's zero stress on the gate posts or hinges. This protects masonry and stone pillars from cracking over time.
Yes. It retrofits easily onto the bottom frame of new or old gates in wood, metal, or iron - no need to replace the gate to automate it.
Yes. An integrated 3D clutch mechanism automatically locks the driving wheel when the gate is fully closed, preventing force-opening without a separate padlock. A manual override key switches to manual operation during a power outage.
500N of opening thrust, with a choice of 40W, 80W, or 120W DC24V motor options to match your gate size. It runs on AC220V or DC24V and is compatible with battery and solar backup.
A complete trackless kit: a pair of ground-roller drive units with elastic suspension columns, the smart logic controller, two manual override keys, a pair of 315MHz rolling-code remotes, and the locking retaining iron ground plates.
